TrueGrid Porous Ground Paving Grid - Pallet of 200

TrueGrid Porous Ground Paving Grid – Pallet of 200

TrueGrid is a high-strength, interlocking porous ground reinforcement system designed for landscaping, construction, groundworks and commercial applications. Supplied in trade pallet quantities of 200 grids, each pallet provides approximately 44m² coverage, making it an ideal solution for contractors, landscapers, builders, groundworkers, merchants and other professional users.

Manufactured from 100% recycled material diverted from landfill and fully recyclable, TrueGrid provides a durable and sustainable ground reinforcement solution while maintaining natural drainage through the finished surface.

The grids can be filled with gravel, stone, soil, sand or grass and are suitable for a wide variety of applications, including car parks, access roads, driveways, pathways, construction sites, landscaping projects and bases for garden buildings.

Trade & Project Benefits

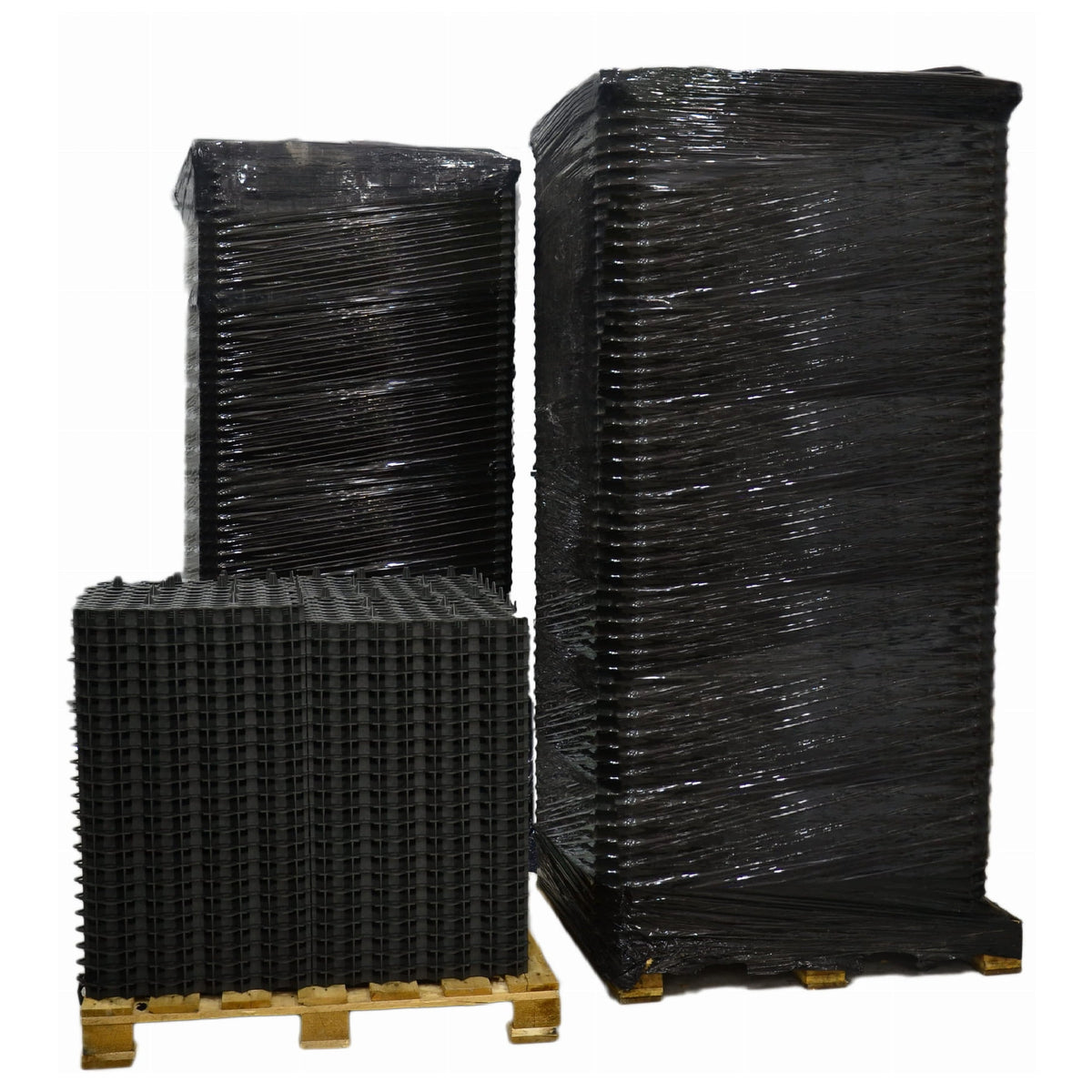

• 200 grids per pallet
• Approximately 44m² coverage per pallet
• High strength of up to 400 tonnes/m²
• Suitable for axle loads of up to 14 tonnes when installed on a suitable base
• Fast interlocking installation system
• Installation rates of up to 100m² per person per hour, helping reduce on-site labour costs
• 35mm ground spikes help resist lateral forces caused by vehicle movement
• Suitable for gravel, grass, soil, sand and stone infill
• Helps prevent gravel migration and surface rutting
• Provides effective surface reinforcement while maintaining natural drainage
• Suitable for use as part of a SuDS source control solution
• Lightweight for easier transport and on-site handling
• Easily cut to size using a suitable saw
• Slip resistant, crack resistant, frost resistant and UV resistant
• Weatherproof and dimensionally stable
• Non-expanding construction
• Minimal ongoing maintenance
• Manufactured from 100% recycled material
• 100% recyclable

Product Specification

• Product: TrueGrid Porous Ground Paving Grid

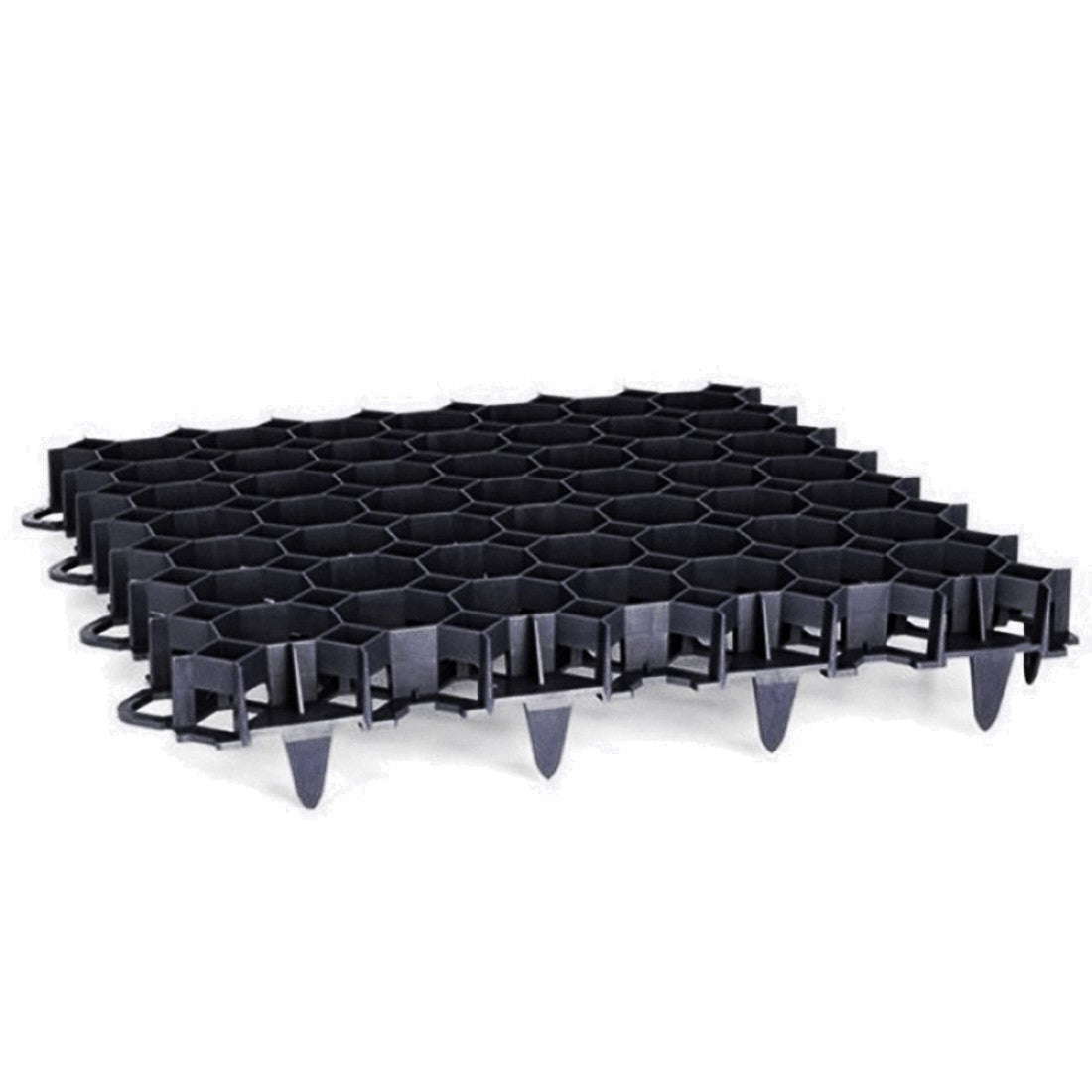

• Grid Size: Approximately 468 x 468 x 40mm (+/- 5%)
• Quantity: 200 grids per pallet
• Pallet Coverage: Approximately 44m²
• Grid Weight: Approximately 0.99kg each
• Load Capacity: Up to 400 tonnes/m²*
• Axle Load: Up to 14 tonnes on a suitable base*

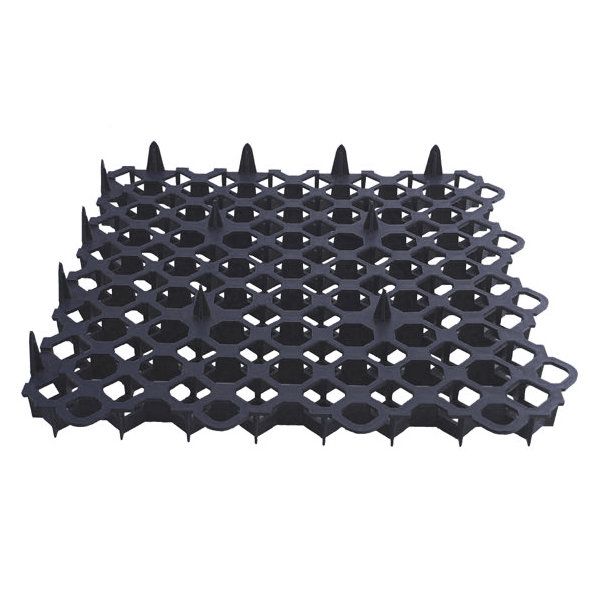

• Ground Spikes: 35mm
• Material: 100% recycled plastic
• Recyclable: Yes

Suitable Applications

TrueGrid is designed for a broad range of commercial, landscaping and residential ground reinforcement projects, including:

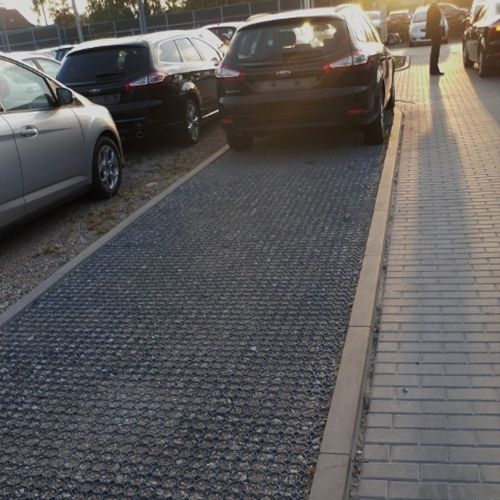

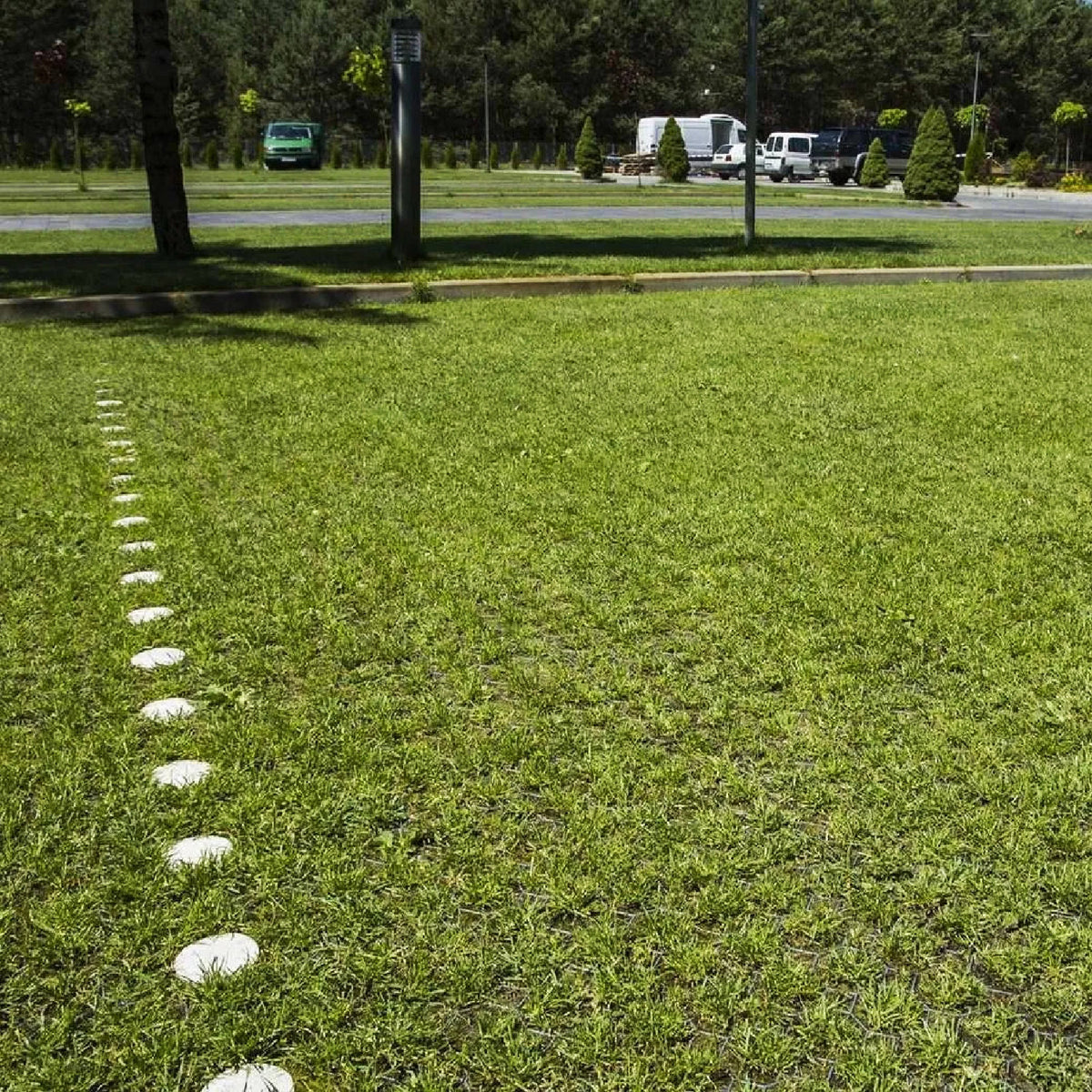

• Green car parks and overflow parking areas
• Private lanes and access roads
• Emergency vehicle access routes

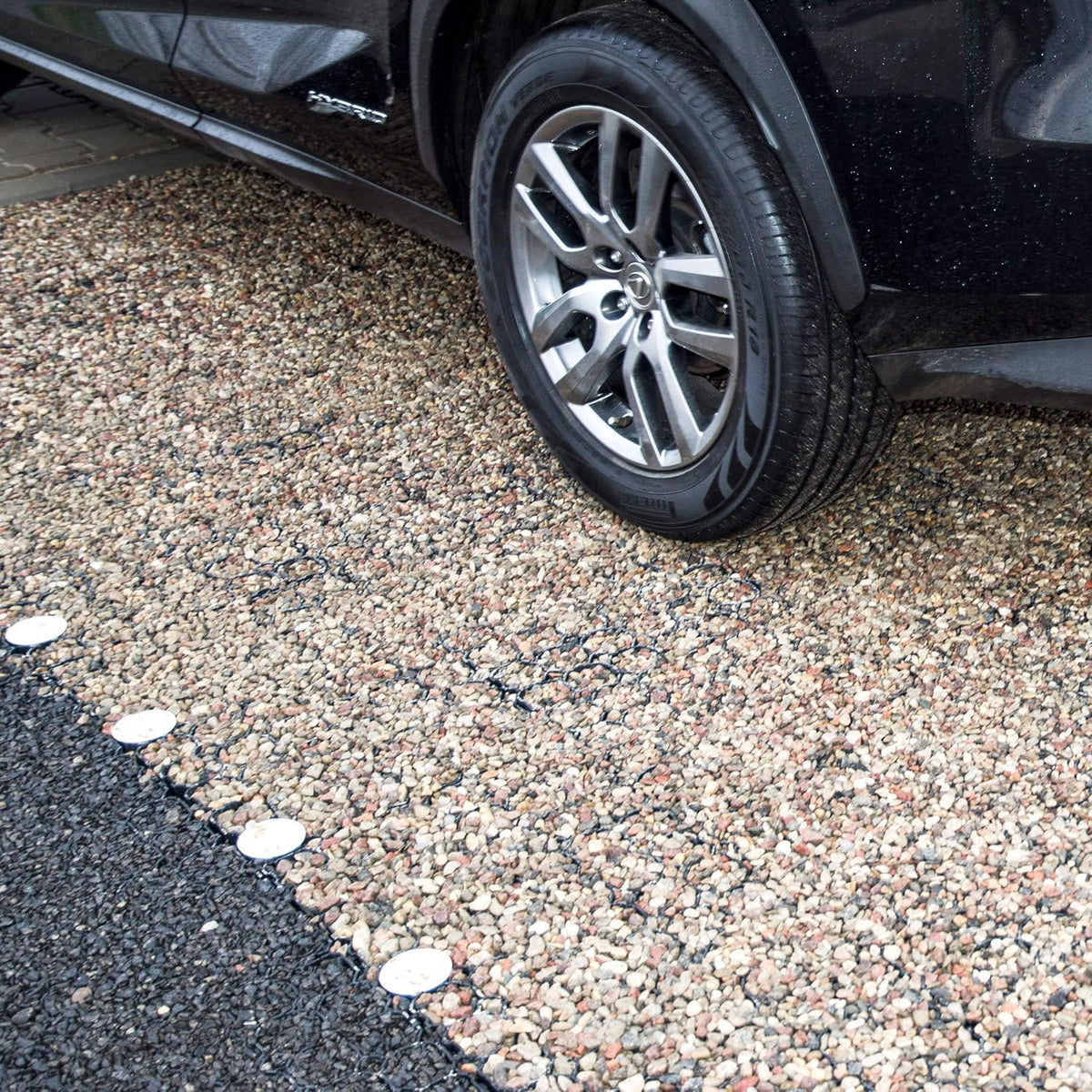

• Gravel driveways
• Pedestrian pathways
• Construction sites and temporary access areas
• Landscaping and ground reinforcement
• Shed, decking, greenhouse and log cabin bases
• Greenhouse soakaway areas
• Golf courses
• Equestrian and livestock facilities
• Green roofs and rooftop gardens
• River and road embankments
• Private airfields
• SuDS source control applications

Installation & Ground Preparation

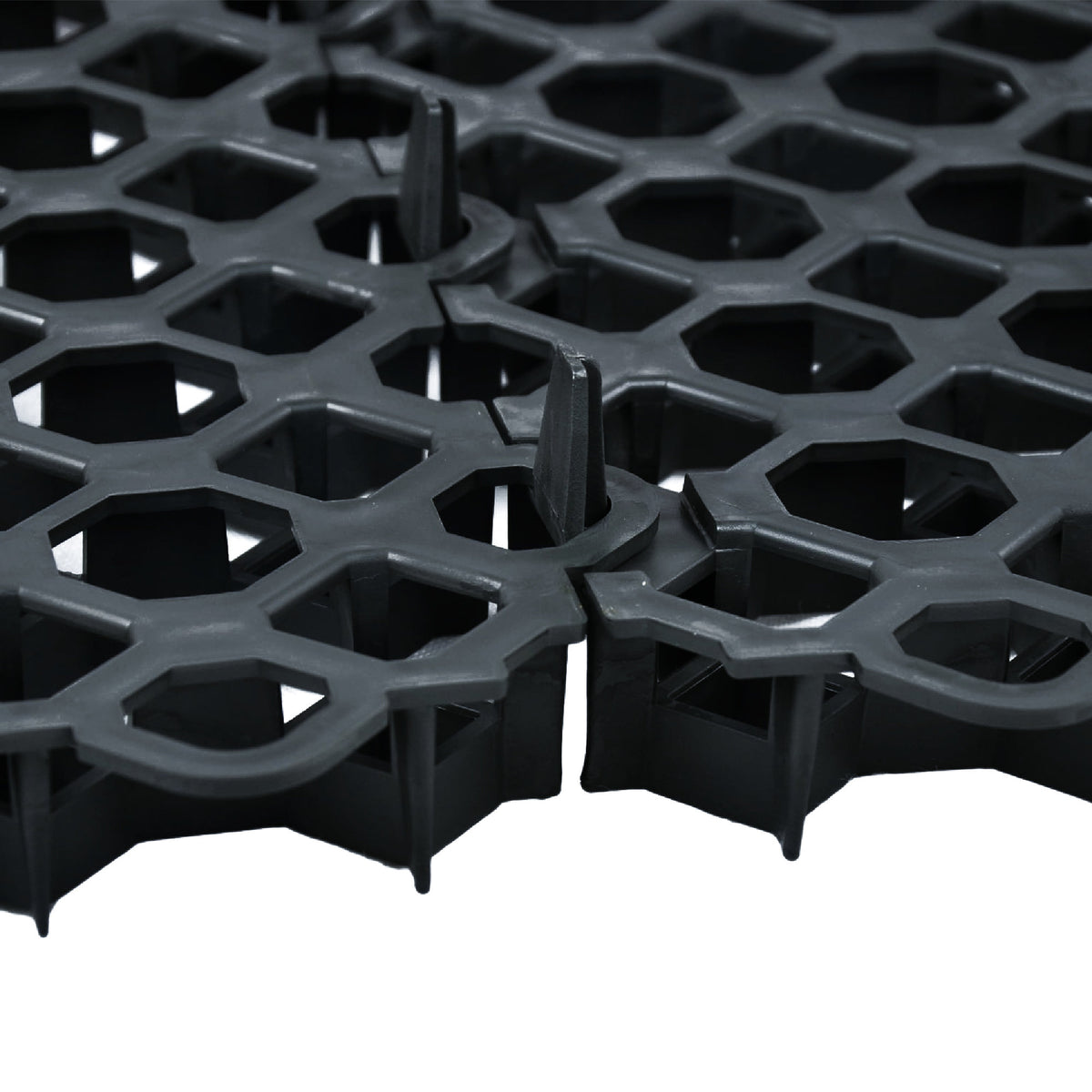

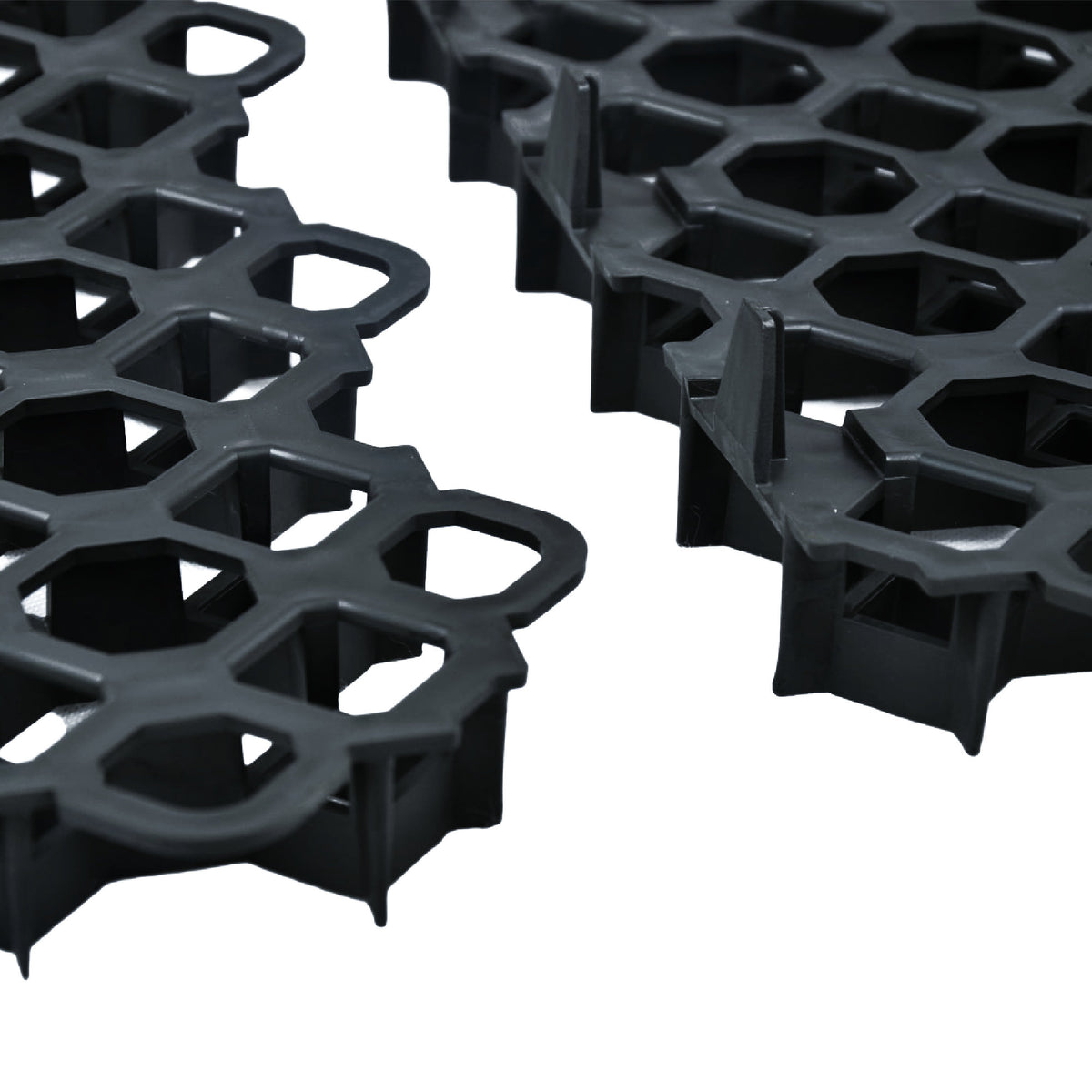

TrueGrid features a proven interlocking connection system for fast and straightforward installation. The grids can be cut where required using a suitable saw, making them easy to adapt around edges, corners and obstacles.

For suitable applications, a water-permeable woven weed control or geotextile fabric can be installed beneath the grids to help control weed growth and provide separation and stabilisation between ground layers.

Suitable for Trade & Wholesale Supply

Supplied as a full pallet of 200 grids covering approximately 44m², TrueGrid is particularly suited to landscaping contractors, groundworkers, builders, driveway installers, garden building installers, property developers, agricultural users and trade resellers.

With its combination of high load-bearing performance, porous construction, fast installation and broad range of applications, TrueGrid is a versatile ground reinforcement product for both project-based purchasing and trade stockholding.

*Load-bearing performance is dependent upon correct installation, ground conditions, base preparation and application.
